EQUIPMENT
PLC-controlled, for granular products such as sugar, rice, peanuts, tea and dried fruit.
Send us photos or requirements of your product and we'll recommend the right bag style, material and packaging method.
This is Chung Tair's in-house equipment, used for our contract packaging.

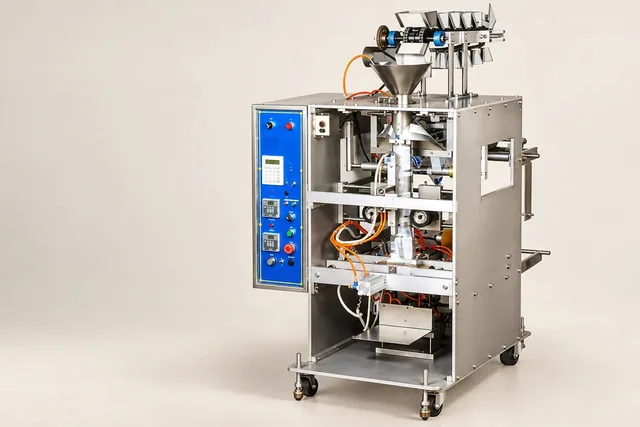

Controlled by a PLC programmable system with pneumatic cylinder action, it packs granular products such as sugar, rice, peanuts, plums, tea, dried fruit, popcorn, seeds, chocolate, melon seeds and bonito flakes. It uses OPP / KOP / PET foil laminates and other heat-sealable materials, with a choice of volumetric or net-weight measuring. Bag style: pillow / back seal (PILLOW TYPE).
| Bag Width | 100～200 mm |
|---|---|
| Bag Length | 100～350 mm |
| Max. Film Width | 430 mm |
| Main Motor | 0.5HP |
| Power Rating | 1200W |
| Weight | 280 kg |
| Speed | 0～60 pack/min |
| Packing Dimensions | H2500×W660×L1200 mm |
| Optional Accessories | Date printer, net-weight scale |
| Bag Width | 100～200 mm |
|---|---|
| Bag Length | 100～300 mm |
| Max. Film Width | 430 mm |
| Main Motor | 0.5HP |
| Power Rating | 1000W |
| Weight | 250 kg |
| Speed | 0～60 pack/min |
| Packing Dimensions | H2400×W560×L1200 mm |
| Optional Accessories | Date printer, net-weight scale |
